RayDeepAO MJT

Author: Mark Joey Tang - https://www.facebook.com/MJTLab

• http://www.nukepedia.com/gizmos/3d/raydeepao
• http://bit.ly/menupy

A setup to render Ambient Occlusion from Geo to deep format, able to set non-renderable objects.

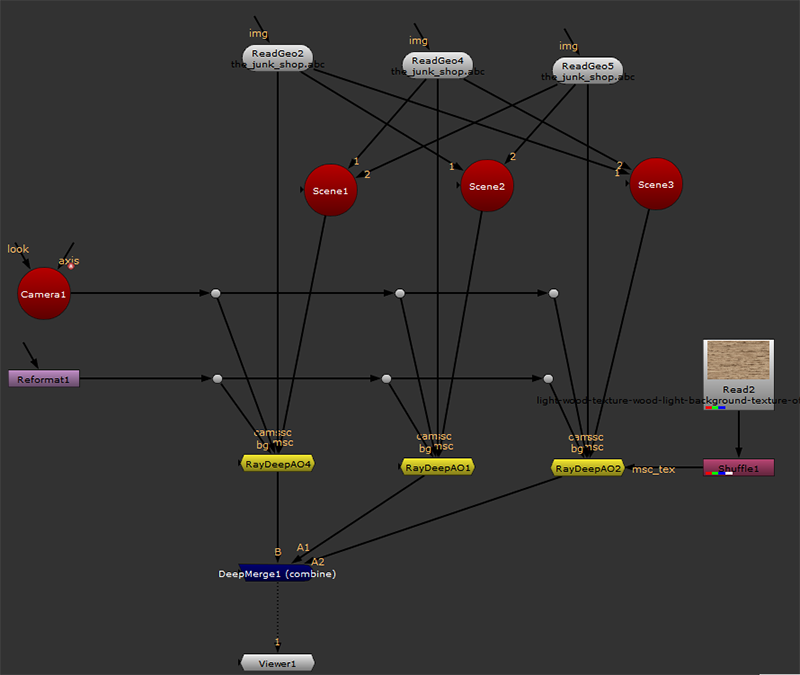

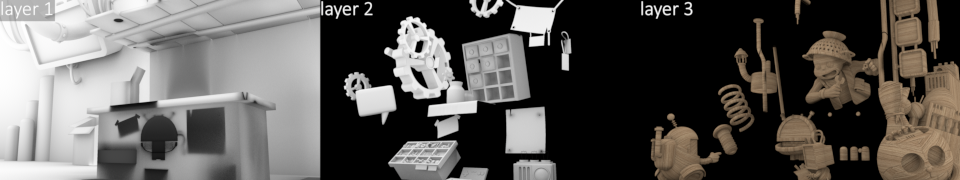

Create all in layers, so the main scene can interact with other geos but not holdout by them.

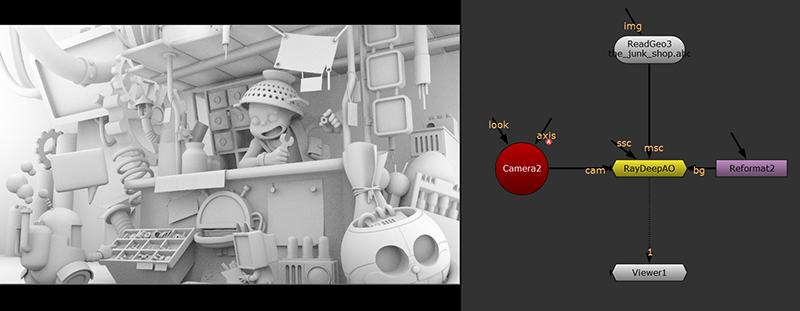

Inputs:

• cam: connect with camera node
• bg: define the output resolution
• msc: stand for 'main scene', which is the primary geo(s) to render AO. Input can be a single geo or a scene node connected to multiple geos.
• ssc: stand for 'sub scene', which is setup non-renderable geo(s) but they interact with the primary geo(s). Input can be a single geo or a scene node connected to multiple geos.

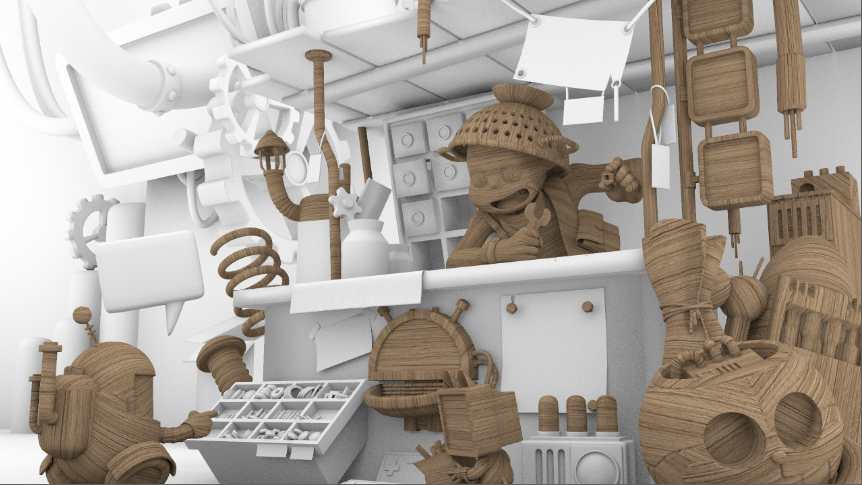

• msc_tex: stand for 'main scene texture'. This input will be used when 'use texture' is checked. Texture required in UV space.

Output:

Output is in deep format. If output vector is checked, position and normal data is also in deep format.
